北沙系列（九）：北沙画线{主、副图公式、说明、图片}

二、说明
1、背离信号：通过价格和指标画线颜色的反差、能直观地看到背离信号；
2、形态信号：上升旗形、下降旗形、收敛三角、扩张三角、V形等等、将直观地展现在眼前；
3、注意与成交量的配合、形态再好、没有量的支持、结局往往不乐观；
4、开放式源码：大家可根据自己需要增加画线数、直到满意为止；
5、瑕不掩瑜：本公式可能会漏掉细小信号、请大家体谅；

三、感谢

感谢身处异国大漠之中的北沙老师、冒着酷热天气、百忙中抽时间编写公式

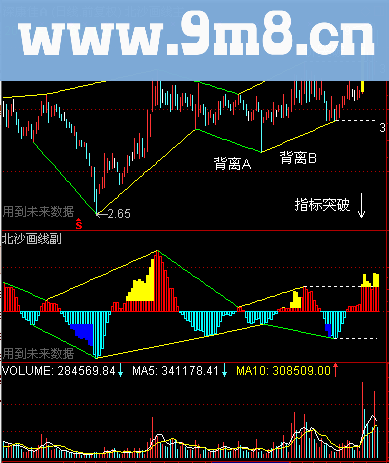

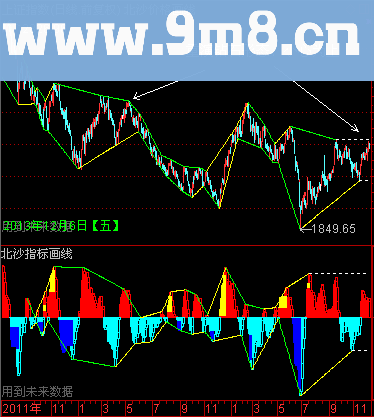

四、图表

五、特别提醒

从形态上看、上证在重演钻石结构、已到达顶端
如果不能成功突破、将产生快速杀跌动作
操作上一定注意做好防空措施
宁可错过、不可做错

{北沙画线主图}

DIF:=EMA(CLOSE,12)-EMA(CLOSE,26);
DEA:=EMA(DIF,9);
MACD:=(DIF-DEA)*2,COLORSTICK;
VA1:=HHVBARS(H,BARSLAST(MACD 0)+1);
VA2:=CROSS(BACKSET(CROSS(0,MACD),REF(VA1,1)+2),0.5);
JQG:=DRAWLINE(VA2,H,REF(VA2,1),REF(H,1),1),COLORGREEN,DOTLINE;{在价格画线}
NOTEXT前高A:DRAWLINE(VA2,H,ISLASTBAR,REF(H,BARSLAST(VA2)),1),COLORWHITE,DOTLINE;
DRAWNUMBER(ISLASTBAR,NOTEXT前高A,NOTEXT前高A),COLORWHITE;

VA3:=LLVBARS(L,BARSLAST(MACD 0)+1);
VA4:=CROSS(BACKSET(CROSS(MACD,0),REF(VA3,1)+2),0.5);
NOTEXT前低A:DRAWLINE(VA4,L,ISLASTBAR,REF(L,BARSLAST(VA4)),1),COLORWHITE,DOTLINE;
DRAWNUMBER(ISLASTBAR,NOTEXT前低A,NOTEXT前低A),COLORWHITE;

基准:=CONST(SUM(VA2,0));
前高4:=基准-4=SUM(VA2,0) AND VA2,COLORWHITE,NODRAW;
前高3:=基准-3=SUM(VA2,0) AND VA2,COLORWHITE,NODRAW;
前高2:=基准-2=SUM(VA2,0) AND VA2,COLORWHITE,NODRAW;
前高1:=基准-1=SUM(VA2,0) AND VA2,COLORYELLOW,NODRAW;
前高:=基准=SUM(VA2,0) AND VA2,COLORCYAN,NODRAW;

距离G1:=BARSLAST(前高1);
距离G2:=BARSLAST(前高2);
距离G3:=BARSLAST(前高3);
距离G4:=BARSLAST(前高4);

NOTEXTG1:DRAWLINE(前高1,H,前高 AND H =REF(H,距离G1),H,0),COLORYELLOW;
NOTEXTG2:DRAWLINE(前高1,H,前高 AND H REF(H,距离G1),H,0),COLORGREEN;
NOTEXTG3:DRAWLINE(前高2,H,前高1 AND H =REF(H,距离G2),H,0),COLORYELLOW;
NOTEXTG4:DRAWLINE(前高2,H,前高1 AND H REF(H,距离G2),H,0),COLORGREEN;
NOTEXTG5:DRAWLINE(前高3,H,前高2 AND H =REF(H,距离G3),H,0),COLORYELLOW;
NOTEXTG6:DRAWLINE(前高3,H,前高2 AND H REF(H,距离G3),H,0),COLORGREEN;
NOTEXTG7:DRAWLINE(前高4,H,前高3 AND H =REF(H,距离G4),H,0),COLORYELLOW;
NOTEXTG8:DRAWLINE(前高4,H,前高3 AND H REF(H,距离G4),H,0),COLORGREEN;

基准2:=CONST(SUM(VA4,0));
前低:=基准2=SUM(VA4,0) AND VA4;
前低1:=基准2-1=SUM(VA4,0) AND VA4;
前低2:=基准2-2=SUM(VA4,0) AND VA4;
前低3:=基准2-3=SUM(VA4,0) AND VA4;
前低4:=基准2-4=SUM(VA4,0) AND VA4;

距离D1:=BARSLAST(前低1);
距离D2:=BARSLAST(前低2);
距离D3:=BARSLAST(前低3);
距离D4:=BARSLAST(前低4);

NOTEXTD1:DRAWLINE(前低1,L,前低 AND L =REF(L,距离D1),L,0),COLORYELLOW;
NOTEXTD2:DRAWLINE(前低1,L,前低 AND L REF(L,距离D1),L,0),COLORGREEN;
NOTEXTD3:DRAWLINE(前低2,L,前低1 AND L =REF(L,距离D2),L,0),COLORYELLOW;
NOTEXTD4:DRAWLINE(前低2,L,前低1 AND L REF(L,距离D2),L,0),COLORGREEN;
NOTEXTD5:DRAWLINE(前低3,L,前低2 AND L =REF(L,距离D3),L,0),COLORYELLOW;
NOTEXTD6:DRAWLINE(前低3,L,前低2 AND L REF(L,距离D3),L,0),COLORGREEN;
NOTEXTD7:DRAWLINE(前低4,L,前低3 AND L =REF(L,距离D4),L,0),COLORYELLOW;
NOTEXTD8:DRAWLINE(前低4,L,前低3 AND L REF(L,距离D4),L,0),COLORGREEN;

ZT:=REF(C,1)*1.1-C 0.01 AND H=C;{涨停}
DT:=IF((REF(C,1)-C)*100/REF(C,1) =(10-0.01*100/REF(C,1)) AND L=C,1,0);{跌停};
BA:STICKLINE(ZT,OPEN,CLOSE,0.1,0),COLORYELLOW;
BC:STICKLINE(DT,OPEN,CLOSE,0.1,0),COLORLIGREEN;

DA:=YEAR AND MONTH AND DAY;
AAA:=STRCAT(CON2STR(YEAR,0),'年');
AAB:=STRCAT(CON2STR(MONTH,0),'月');
AA33:=STRCAT(CON2STR(DAY,0),'日');
AA4:=STRCAT('【',IF(WEEKDAY=1,'一',IF(WEEKDAY=2,'二',IF(WEEKDAY=3,'三',IF(WEEKDAY=4,'四',IF(WEEKDAY=5,'五',IF(WEEKDAY=6,'六','日')))))));
AA:=STRCAT(STRCAT(STRCAT(AAA,AAB),STRCAT(AA33,AA4)),'】');
SA:DRAWTEXT_FIX(DA,0,0,0,AA),COLORGREEN;

{北沙画线副图}

DIF:=EMA(CLOSE,12)-EMA(CLOSE,26);
DEA:=EMA(DIF,9);
MACD:=(DIF-DEA)*2,COLORSTICK;
SA:=INTPART(MACD*100+0.5)/100,COLORYELLOW,NODRAW;
红天数:=IF(MACD 0,BARSLAST(CROSS(MACD,0)),DRAWNULL),COLORYELLOW,NODRAW;
绿天数:=IF(MACD 0,BARSLAST(CROSS(0,MACD)),DRAWNULL),COLORCYAN,NODRAW;
W1:STICKLINE(MACD 0,MACD,0,2.5,1),COLORRED;
W2:STICKLINE(MACD 0,MACD,0,2.5,1),COLORCYAN;

VA1:=HHVBARS(MACD,BARSLAST(MACD 0)+1);
VA2:=CROSS(BACKSET(CROSS(0,MACD),REF(VA1,1)+2),0.5);
QG:=DRAWLINE(VA2,MACD,REF(VA2,1),REF(MACD,1),1),COLORGREEN,DOTLINE;
NOTEXT前高A:DRAWLINE(VA2,MACD,ISLASTBAR,REF(MACD,BARSLAST(VA2)),1),COLORWHITE,DOTLINE;

VA3:=LLVBARS(MACD,BARSLAST(MACD 0)+1);
VA4:=CROSS(BACKSET(CROSS(MACD,0),REF(VA3,1)+2),0.5);
QD:=DRAWLINE(VA4,MACD,REF(VA4,1),REF(MACD,1),1),COLORYELLOW,DOTLINE;
NOTEXT前低A:DRAWLINE(VA4,MACD,ISLASTBAR,REF(MACD,BARSLAST(VA4)),1),COLORWHITE,DOTLINE;

W3:STICKLINE(MACD QG,MACD,QG,1,0),COLORYELLOW;
W4:STICKLINE(MACD 0 AND MACD QD AND QD 0,MACD,QD,1,0),COLORBLUE;

基准:=CONST(SUM(VA2,0));
前高:=基准=SUM(VA2,0) AND VA2,COLORCYAN,NODRAW;
前高1:=基准-1=SUM(VA2,0) AND VA2,COLORYELLOW,NODRAW;
前高2:=基准-2=SUM(VA2,0) AND VA2,COLORWHITE,NODRAW;
前高3:=基准-3=SUM(VA2,0) AND VA2,COLORWHITE,NODRAW;
前高4:=基准-4=SUM(VA2,0) AND VA2,COLORWHITE,NODRAW;

距离G1:=BARSLAST(前高1);
距离G2:=BARSLAST(前高2);
距离G3:=BARSLAST(前高3);
距离G4:=BARSLAST(前高4);

NOTEXTG2:DRAWLINE(前高1,MACD,前高 AND MACD =REF(MACD,距离G1),MACD,0),COLORYELLOW;
NOTEXTG1:DRAWLINE(前高1,MACD,前高 AND MACD REF(MACD,距离G1),MACD,0),COLORGREEN;
NOTEXTG3:DRAWLINE(前高2,MACD,前高1 AND MACD =REF(MACD,距离G2),MACD,0),COLORYELLOW;
NOTEXTG4:DRAWLINE(前高2,MACD,前高1 AND MACD REF(MACD,距离G2),MACD,0),COLORGREEN;
NOTEXTG5:DRAWLINE(前高3,MACD,前高2 AND MACD =REF(MACD,距离G3),MACD,0),COLORYELLOW;
NOTEXTG6:DRAWLINE(前高3,MACD,前高2 AND MACD REF(MACD,距离G3),MACD,0),COLORGREEN;
NOTEXTG7:DRAWLINE(前高4,MACD,前高3 AND MACD =REF(MACD,距离G4),MACD,0),COLORYELLOW;
NOTEXTG8:DRAWLINE(前高4,MACD,前高3 AND MACD REF(MACD,距离G4),MACD,0),COLORGREEN;

基准2:=CONST(SUM(VA4,0));
前低:=基准2=SUM(VA4,0) AND VA4;
前低1:=基准2-1=SUM(VA4,0) AND VA4;
前低2:=基准2-2=SUM(VA4,0) AND VA4;
前低3:=基准2-3=SUM(VA4,0) AND VA4;
前低4:=基准2-4=SUM(VA4,0) AND VA4;

距离D1:=BARSLAST(前低1);
距离D2:=BARSLAST(前低2);
距离D3:=BARSLAST(前低3);
距离D4:=BARSLAST(前低4);

NOTEXTD1:DRAWLINE(前低1,MACD,前低 AND MACD =REF(MACD,距离D1),MACD,0),COLORYELLOW;
NOTEXTD2:DRAWLINE(前低1,MACD,前低 AND MACD REF(MACD,距离D1),MACD,0),COLORGREEN;
NOTEXTD3:DRAWLINE(前低2,MACD,前低1 AND MACD =REF(MACD,距离D2),MACD,0),COLORYELLOW;
NOTEXTD4:DRAWLINE(前低2,MACD,前低1 AND MACD REF(MACD,距离D2),MACD,0),COLORGREEN;
NOTEXTD5:DRAWLINE(前低3,MACD,前低2 AND MACD =REF(MACD,距离D3),MACD,0),COLORYELLOW;
NOTEXTD6:DRAWLINE(前低3,MACD,前低2 AND MACD REF(MACD,距离D3),MACD,0),COLORGREEN;
NOTEXTD7:DRAWLINE(前低4,MACD,前低3 AND MACD =REF(MACD,距离D4),MACD,0),COLORYELLOW;
NOTEXTD8:DRAWLINE(前低4,MACD,前低3 AND MACD REF(MACD,距离D4),MACD,0),COLORGREEN;
