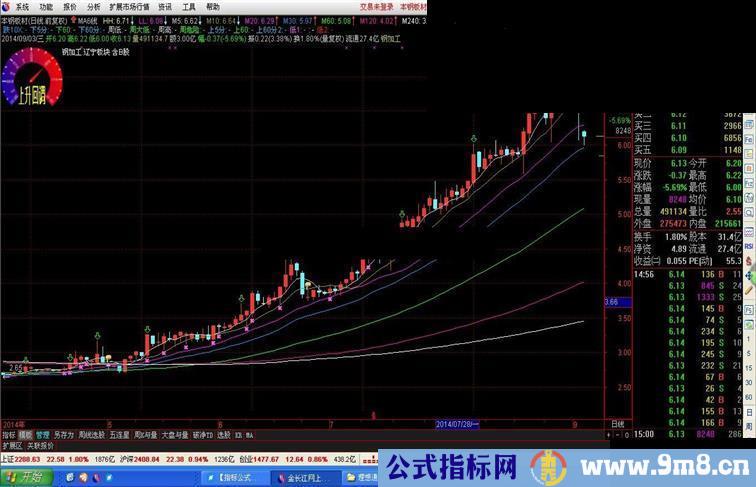

通达信用{主图仪表图}源码图

1.图片保存的格式必须为：BMP
 2.图片保存到T002--signals 文件夹中
3.图片名只能是：半仓，满仓，上穿3线，减仓----等等，图片名的前后不能有任何字母与数字

  {主图仪表图}
LC:=REF(C,1);
 M5:MA(C,5);
 M10:MA(C,10);
 M20:MA(C,20);
 M30:MA(C,30),COLORFFAA00;
 M60:MA(C,60),COLOR00FF00;
 M120:=MA(C,120),COLORFFCC00;
满仓:=IF(ISLASTBAR AND (C>M5 OR M5>=REF(M5,1)) AND C>M10 AND (M5>=M10 OR (M5>=M20 AND M5>=REF(M5,1)))
          AND M5>M20 AND M10>M20 AND M20>M60 AND M30>M120 AND M10>=REF(M10,1) AND M20>=REF(M20,1)
          AND M60>=REF(M60,1) AND M120>=REF(M120,1),1,0);
大半仓:=ISLASTBAR AND (C>M10 OR (C>M5 AND M10>=REF(M10,1))) AND M5>=M20 AND (M10>=M20 OR M10>=REF(M10,1)) AND M20>=M60
         AND (M10>=REF(M10,1) OR (C>M5 AND M5>=REF(M5,1))) AND M20>=REF(M20,1) AND M60>=REF(M60,1);
上升回调:=ISLASTBAR AND CM20 AND M10>M20 AND M20>M60 AND M5<=REF(M5,1) AND
          M10=REF(M20,1) AND M60>=REF(M60,1);
减仓:=ISLASTBAR AND C=REF(M20,1);
半仓:=ISLASTBAR AND C>M5 AND M5>M10 AND M10>M20 AND M20>=M30 AND M5>=REF(M5,1) AND M10>=REF(M10,1)
         AND M20>=REF(M20,1) AND M30>=REF(M30,1) AND M30>=M60 AND M60<=REF(M60,1);
反弹:=ISLASTBAR AND C>M5 AND C>M10 AND M5>M20 AND M60>M20 AND M20>=REF(M20,1) AND M60 探底阶段:=ISLASTBAR AND C          AND M20 小半仓:=ISLASTBAR AND C>=LC AND C>=M5 AND M5>=M10 AND M10>=M20 AND M5>=REF(M5,1) AND M10>=REF(M10,1) AND
         M20>=REF(M20,1) AND M20 关注:=ISLASTBAR AND C>LC AND C>M5 AND C>M20 AND M5>M10 AND M5>REF(M5,1) AND M10>REF(M10,1) AND M20<=REF(M20,1) AND
         M20<=M60;
空仓:=ISLASTBAR AND (M5 上穿3线:=IF(ISLASTBAR AND C>MAX(M5,MAX(M10,MIN(M20,M30))) AND LC<=(MIN(REF(M5,1),MIN(REF(M10,1),MAX(REF(M20,1),REF(M30,1))))),1,0);
下破3线:=IF(ISLASTBAR AND C=(MAX(REF(M5,1),MAX(REF(M10,1),MIN(REF(M20,1),REF(M30,1))))),1,0);
观望:=ISLASTBAR AND 满仓=0 AND 大半仓=0 AND 上升回调=0 AND 减仓=0 AND 半仓=0 AND 反弹=0 AND 探底阶段=0
          AND 小半仓=0 AND 关注=0 AND 空仓=0 AND 上穿3线=0 AND 下破3线=0;

DRAWGBK(满仓 AND 上穿3线=0,0,0,0,'满仓',0),COLORFF00FF;
 DRAWGBK(大半仓 AND (满仓=0 AND BARSCOUNT(C)>60),0,0,0,'大半仓',0),COLORFF00FF;
 DRAWGBK(上升回调,0,0,0,'上升回调',0),COLORFF8080;
 DRAWGBK(减仓,0,0,0,'减仓',0),COLOR009500;
 DRAWGBK(半仓,0,0,0,'半仓',0),COLOR00FFFF;
 DRAWGBK(反弹,0,0,0,'反弹',0),COLORFFFF00;
 DRAWGBK(探底阶段,0,0,0,'探底阶段',0);
 DRAWGBK(观望,0,0,0,'观望',0),COLORFFFF00;
 DRAWGBK(小半仓,0,0,0,'小半仓',0),COLOR00FFFF;
 DRAWGBK(关注,0,0,0,'关注',0),COLOR00BF00;
 DRAWGBK(空仓 AND 下破3线=0,0,0,0,'空仓',0),COLOR00BF00;
 DRAWGBK(上穿3线=1,0,0,0,'上穿3线',0),COLOR00BF00;
 DRAWGBK(下破3线=1,0,0,0,'下破3线',0),COLOR00BF00;
